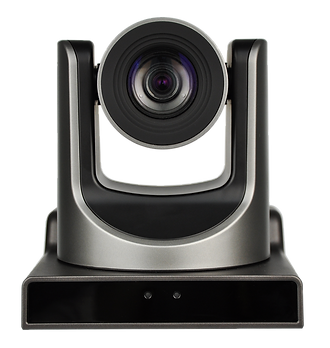

PTZ-200



PTZ-200 is the third model in the PTZ-Series video conference camera line up. Like other PTZ-Series video conference camera, it has applied 1/2.7 inch, 2.07 million effective pixels high quality HD CMOS sensor. When compare to others in the PTZ-Series, it has a function to directly save its recording file to a USB drive for better convenience in storing or transferring the video.

Clear and Wide

1080P Full HD

Capable of recording 1080P full HD video at 30 fps.

Wide-Angle Lens

Uses 72.5° wide-angle lens and support 16x digital zoom. (Can be upgraded to 32x digital zoom if needed)

High SNR CMOS & Noise Reduction Algorithm

High SNR of CMOS sensor combined with 2D and 3D noise reduction algorithm, effectively reduce the noise, under low illumination conditions.



Compatible and Convinient

USB Interface

Uses USB 3.0 as interface making it compatible with many devices.

Direct Output

The record of the video camera can be directly outputted to a local USB flash disk making it very easy to store or transfer the video recording.

Remote and Flexible Encoding

Remote Control

RS232/485 interface, all the parameters of the camera can be remote
controlled by the high-speed communications.

H.265 Support

H.265 video encoding is support so that the video file output size would be compressed for better storage or transferring.



HIGH FRAME RATE

Output frame rate up to 30 fps in 1080p.

REMOTE CONTROL

RS232/485 interface, all the parameters of the camera can be remote controlled by the high-speed communications.

HIGH QUALITY IMAGE

Panasonic's 1/2.7 inch,

HD CMOS sensor.

LOW LIGHT

High SNR of CMOS sensor combined with 2D and 3D noise reduction algorithm.

WIDE ANGLE LENS

72.5° wide-angle high quality lens, support 16x digital zoom.

New Look

Directly records video to local USB flash disk



Specification

Camera

Video System

HD: 1080p/60, 1080p/50, 1080i/60, 1080i/50, 1080p/30, 1080p/25, 720p/60, 720p/50, 720p/30, 720p/25, 640x480p/240

SD: 480i, 576i

Sensor

1/2.7'', CMOS, Effective Pixel: 2.07M

Lens

12x, f3.5mm ~ 42.3mm, F1.8 ~ F2.8

Digital Zoom

16x (Optional:32x)

Shutter

1/30s ~ 1/10000s

Digital Noise Reduction

2D&3D Digital Noise Reduction

Horizontal Angle of View

72.5° ~ 6.9°

Vertical Angle of View

44.8° ~ 3.9°

Horizontal Rotation Range

±170°

Vertical Rotation Range

-30° ~ +90°

Pan Speed Range

1.7° ~ 100°/s

Tilt Speed Range

1.7° ~ 69.9°/s

USB Features

Operating System

Windows XP, Windows Vista, Windows 7, Windows 8, Mac OS X, Linux

Color System

YUV 4:2:2

Video Format

USB3.0: 1080p/60, 1080p/50, 1080p/30, 1080p/25, 720p/60, 720p/50, 720p/30, 720p/25

USB2.0: 1080p/10, 720p/25, 960x540p/30, 960x540p/25, 640x360p/60, 640x360p/50

USB Video Communication Protocol

UVC 1.0

UVC PTZ

Support

IPC Featured

Video Compression

H.265/H.264/MJEPG

Video Stream

Main Stream, Sub Stream

Main Stream Resolution

1920x1080, 1280x720, 1024x576

Sub Stream Resolution

720x576, 720x480, 320x240

Video Bit Rate

128Kbps ~ 8192Kbps

Bit Rate Type

Variable Rate, Fixed Rate

Frame Rate

50Hz: 1fps ~ 50fps, 60Hz: 1fps ~ 60fps

Audio Compression

AAC

Audio Bit Rate

96Kbps, 128Kbps, 256Kbps

Support Protocols

TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast, etc.

Input/Output Interface

HD Output

1xHDMI: Version 1.3

SD Output

1xCVBS: 3.5mm mini jack, 1Vp-p, 75Ω

Network Interface

1xRJ45: 10M/100M Ethernet Interface

Audio Interface

1-ch: 3.5mm Audio Interface, Line In

USB

1xUSB3.0: Type B Female Jack

1xUSB2.0: Type A Female Jack

Communication Interface

1xRS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco- D/Pelco-P

1xRS232 Out: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA network use only

1xRS485: 2pin Phoenix Port, Max Distance: 1200m, Protocol: VISCA/ Pelco-D/Pelco-P

Power Jack

JEITA type (DC IN 12V)

Generic Specification

Input Voltage

DC 12V

Current Consumption

1.0A (Max)

Operating Temperature

-10°C ~ 40°C (14°F ~ 104°F)

Storage Temperature

-40°C ~ 60°C (-40°F ~ 140°F)

Power Consumption

12W (Max)

MTBF

>30000h

Size (W x D x H)

169mm x 142mm x 164mm

Net Weight

1.35Kg (3.0lb)

Full Specification Document:
