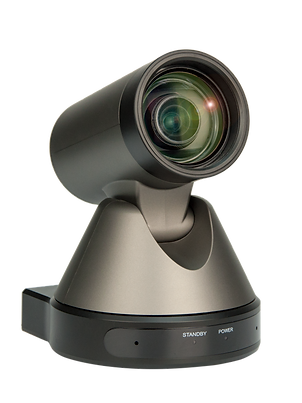

PTZ-100



PTZ-100 is the second model in the PTZ-Series video conference camera line up. Like other PTZ-Series video conference camera, it has applied Panasonic's 1/2.7 inch, 2.07 million effective pixels high quality HD CMOS sensor. When compare to others in the PTZ-Series, it has almost identical specification as PTZ-50, but the it uses HDMI as its output port instead of USB.

Compact and Clear

Completely New Look

Designed with worm gear transmission, completely new look, mini size.

1080P Full HD

Apply Panasonic's 1/2.7 inch, 2.07 million effective pixels high quality HD CMOS sensor, can reach maximum 1920 x 1080 high resolution and achieve quality image.



Wide and Clean

72.5° Wide-Angle Lens + 16x Digital Zoom

Use 72.5° wide-angle high quality lens, support 12x optical zoom, and 16x digital zoom.

Low-Light

High SNR of CMOS sensor combined with 2D and 3D noise reduction algorithm, effectively reduce the noise, even under low illumination conditions, picture can still keep clean and clear.

Ultra-High Frame Rate

The output frame rate up to 30fps in 1080P.

Remote

Remote Control

Using RS232/485 interface, all the parameters of the camera can be remote controlled by the high-speed communications.



HIGH FRAME RATE

Output frame rate up to 30 fps in 1080p.

REMOTE CONTROL

RS232/485 interface, all the parameters of the camera can be remote controlled by the high-speed communications.

HIGH QUALITY IMAGE

Panasonic's 1/2.7 inch,

HD CMOS sensor.

LOW LIGHT

High SNR of CMOS sensor combined with 2D and 3D noise reduction algorithm.

WIDE ANGLE LENS

72.5° wide-angle high quality lens, support 12x optical zoom, and 16x digital zoom.

New Look

Designed with worm gear transmission, completely new look, mini size.



Specification

Camera

Video System

1080p/60, 1080p/50, 1080i/60, 1080i/50, 1080p/30, 1080p/25, 720p/60, 720p/50, 720p/30, 720p/25

Sensor

1/2.7'', CMOS, Effective Pixel: 2.07M

Lens

12x, f3.5mm ~ 42.3mm, F1.8 ~ F2.8

Digital Zoom

16x

Shutter

1/30s ~ 1/10000s

Digital Noise Reduction

2D&3D Digital Noise Reduction

Horizontal Angle of View

72.5° ~ 6.9°

Vertical Angle of View

44.8° ~ 3.9°

Horizontal Rotation Range

±170°

Vertical Rotation Range

-30° ~ +30°

Pan Speed Range

1.7° ~ 100°/s

Tilt Speed Range

0.7° ~ 28°/s

IPC Featured

Video Compression

H.265/H.264/MJEPG

Video Stream

Main Stream, Sub Stream

Main Stream Resolution

1920x1080, 1280x720, 1024x576

Sub Stream Resolution

720x576, 720x480, 320x240

128Kbps ~ 8192Kbps

Bit Rate Type

Variable Rate, Fixed Rate

50Hz: 1fps ~ 50fps, 60Hz: 1fps ~ 60fps

Audio Compression

AAC

Audio Bit Rate

96Kbps, 128Kbps, 256Kbps

Support Protocols

TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast, etc.

Video Bit Rate

Frame Rate

Input/Output Interface

HD Interface

1xHDMI: Version 1.3

Network Interface

1xRJ45: 10M/100M Ethernet Interface

Audio Interface

1-ch: 3.5mm Audio Interface, Line In

Communication Interface

1xRS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco- D/Pelco-P

Power Jack

JEITA type (DC IN 12V)

Generic Specification

Input Voltage

DC 12V

Current Consumption

1.0A (Max)

Operating Temperature

-10°C ~ 40°C (14°F ~ 104°F)

Storage Temperature

-40°C ~ 60°C (-40°F ~ 140°F)

Power Consumption

12W (Max)

MTBF

>30000h

Size (W x D x H)

128.5mm x 118mm x 156.2mm

Net Weight

0.9Kg

Full Specification Document:
