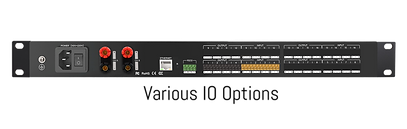

AM(P)-Series



AM(P)-Series is another line up of digital signal processor which contains three models in total which is AM44P, AM84P and AM1208P. The three models are almost identical when it comes to specification but the number of analog channels is different. AM44P would have 4 inputs and 4 outputs, AM84P would have 8 input and 4 output while AM1208P would have 12 input and 8 output. When compares to AMC-Series, AM(P)-Series would have more functionalities.

User Friendly

Multiple Control Option

AM(P)-Series digital signal processor supports mobile phone, tablet control and distributed cloud control just like AMC-Series. Giving users multiple way to control the digital signal processor.



Multiple Function and Input Output

All In One Package

AM(P)-Series digital signal processor can be used to replace many equipment as it is an all in one package. DSP audio processing, built-in automatic mixer, optional feedback elimination, echo elimination, noise elimination module. Supports full function matrix remix and scenario preset. It also supports automatic memory protection.

Varies Input and Output

For input per channel, there are a front stage amplifier, signal generator, expander, compressor and 5 stage parameter equalization. For output per channel, there are 31 section diagram equalizer, delay device, frequency divider and limiter.

USB Playback

USB Playback and Recording

AM(P)-Series support USB background music playback and recording function which gives users more functionalities and option beside audio quality optimization.

USER FRIENDLY

Supports mobile phone, tablet control and distributed cloud control.

MULTIPLE INPUT

Input per channel:Front stage amplifier, signal generator, expander, compressor, 5
stage parameter equalization

AUDIO PROCESSING

Optional feedback elimination, echo elimination, noise elimination module.

MULTIPLE OUTPUT

Output per channel:31 Section diagram equalizer, delay device, frequency divider,
limiter

ALL IN ONE

DSP audio processing, built-in automatic mixer, optional feedback elimination, echo elimination, noise elimination module

USB PLAYBACK AND RECORDING

USB Background music playback and recording function



Specification

DSP Processing

Ti 456MHz FLOPS DSP

Number of Analog Channels

8 Input +8 Output / 16 Input +16 Output

Core Algorithm

Automatic Mixing, Feedback Elimination

RS232

1

RJ45 Control Interface

1

USB Port

1

Output

2x145W @8 Ω,<1%

Power Supply Rejection Ratio (PSRR)

80dB

Signal to Noise Ratio (A Weighted)

> -100dB

Distortion

0.03% @100W,20~20kHz

Simulated Maximum Gain

51dB

Digitalizing bit

24bit

Sampling Rate

48k

Frequency Response(20~20KHz)

±0.2dB

Analog-to-Digital Dynamic Range (A-Weighted)

120dB

Digital-to-Analog Dynamic Range (A-Weighted)

120dB

Input to Output Dynamic Range

108dB

Total Harmonic Distortion + Noise

<0.002% @1KHz ,4dBu

Noise Floor (A- Weighted)

-90dBu

Delay Storage

2s

Analog Input to Output System Delay

3ms

Input Impedance (Balance -Type)

20KΩ

Output Impedance (Balance -Type)

100Ω

Maximum Input/Output Level

+18dBu, Balance

Equivalent Input Noise EIN(20-20kHz,A- Weighted)

≤-131dBU

Phantom Power (Per Input)

48V

Input Common Mode Rejection, 60Hz

80dB

Channel Isolation,1kHz

100dB

Dimensions (W*D*H)

483*260*44.5(mm)

Weight

5Kg

Power Consumption

<350W

Operating Temperature

0-40°C

Working Power Supply

AC110V-220V,50Hz/60Hz
